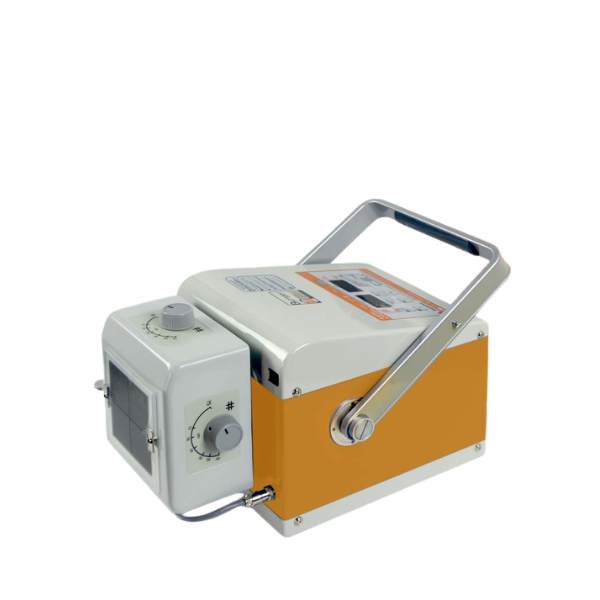

Amadeo P-100/35HB is a new-generation high-frequency portable X-ray system featuring lightweight construction and a compact design while delivering outstanding performance. It is especially well-suited for mobile radiography in hospitals, clinics, emergency field operations, veterinary applications, and security inspection.

KEY FEATURES

  • Integrated high-capacity Li-polymer battery, enabling up to 400 exposures per full charge; charging time < 3 hours.
  • High-frequency generator with output power up to 2.4 kW, providing 40–50% higher efficiency compared with conventional generators.
  • Compact and lightweight design, weighing only 11.2 kg, easy to carry for both indoor and outdoor use.
  • High-brightness LED collimator with dual laser positioning for accurate field alignment.
  • Monoblock design, minimizing vibration and electrical noise for stable image quality.
  • Automatic power supply voltage compensation ensures consistent performance under various operating conditions.
  • High-impact resistance with a dedicated aluminum carrying case that protects the system during transportation.

MAIN TECHNICAL SPECIFICATIONS

  • kV range: 40 – 100 kV, 1 kV step
  • mAs range: 0.4 – 100 mAs (35 steps)
  • Maximum output power: 2.4 kW at 80 kV
  • Focal spot size: 1.2 mm
  • Anode heat capacity: 20 kHU
  • Light field size: 5 × 5 cm to 35 × 35 cm @ 100 cm SID
  • Dimensions: 225 × 170 × 340 mm
  • Weight: 11.2 kg (including battery)

CLINICAL APPLICATIONS

  • Mobile radiography in hospitals: emergency departments, inpatient wards, and ICUs.
  • Field diagnostics: accident sites, community healthcare services.
  • Veterinary imaging: mobile examinations at farms or clinics.
  • Security inspection: object and package screening.
